tHE ULTIMATE HIGH-SPEED SHEET METAL LASER

Customer Success - Dirt King Fabrication

Dirt King Fabrication showcases how they’ve taken their production to new levels with their X-Series SheetLAZER Plus and TubeLAZER machines.

With high cost per square foot in San Diego, it’s crucial for them to run production around the clock and have reliable machines and service/ support at a critical turnaround time.

The SheetLAZER Plus is engineered for excellence in all your sheet and plate application needs. Featuring a dual-shuttle table system, it ensures seamless loading and unloading of raw materials and finished parts, even while the machine continues operating within its enclosure.

Whether you're processing high-speed thin gauge sheet metal parts or tackling thicker materials that demand consistent laser stability, the SheetLAZER is ready for the challenge. This versatile machine is ideal for OEMs and contract manufacturers alike, offering superior quality components configured by X-Series to deliver peak performance right from the start.

Machine Specs

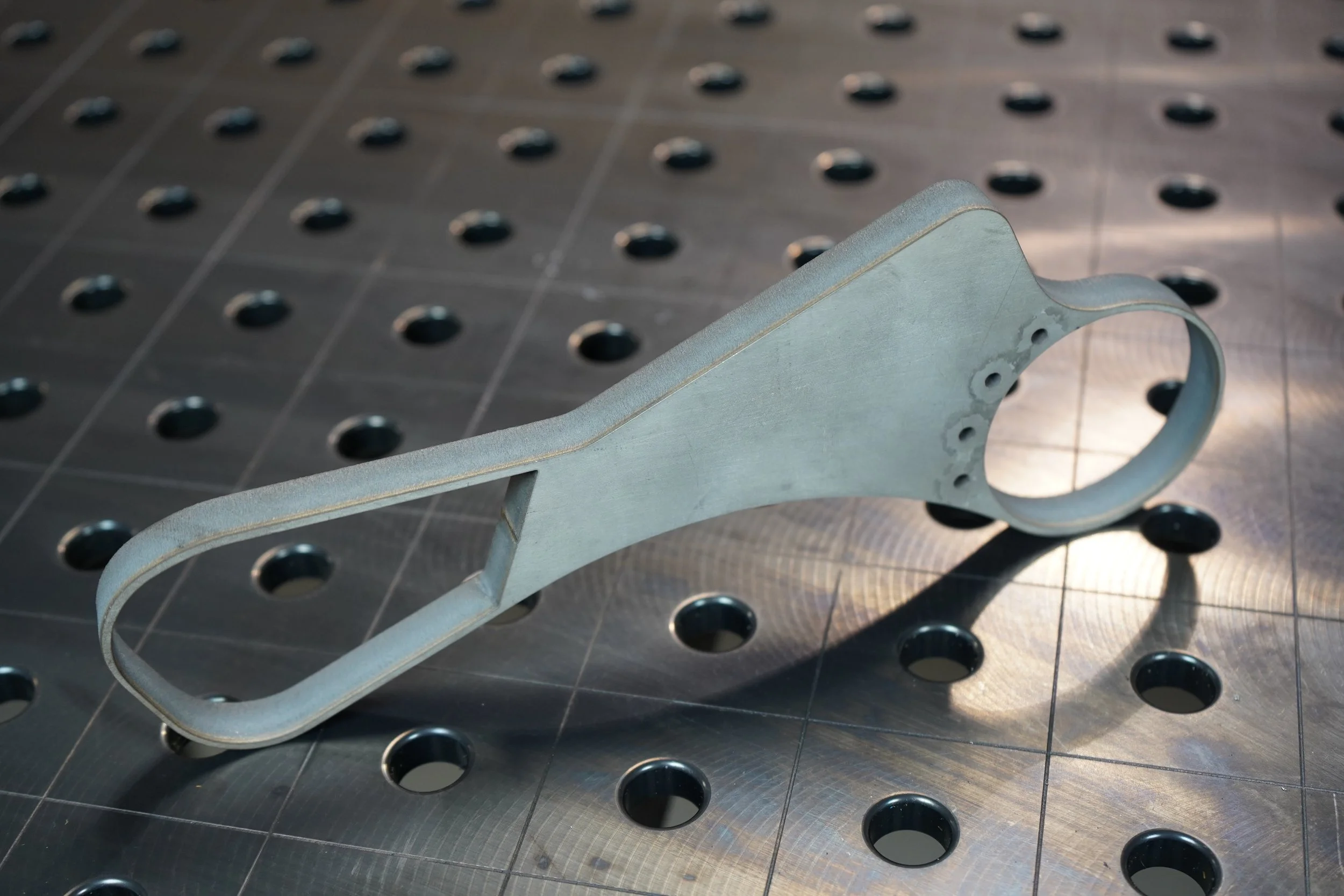

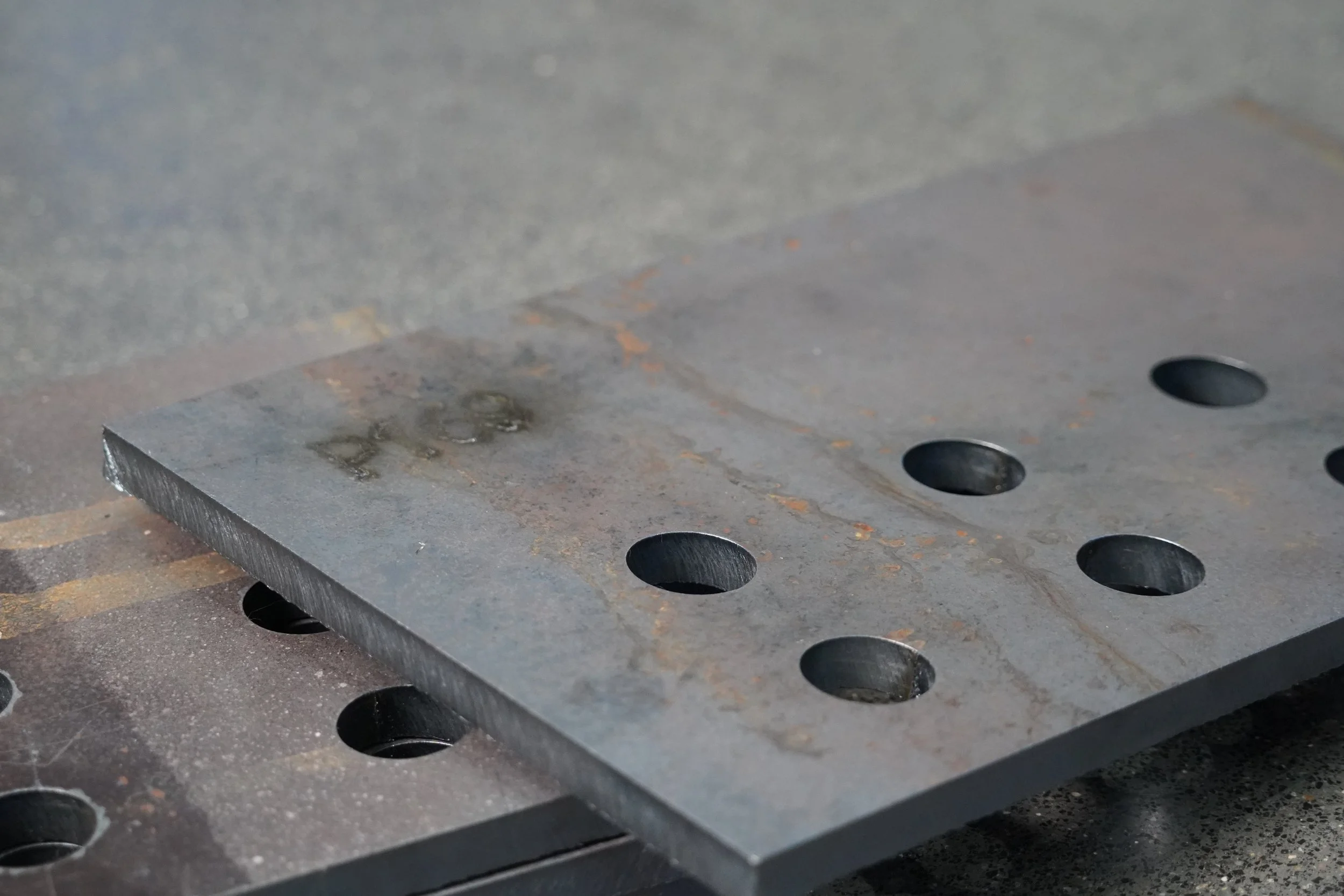

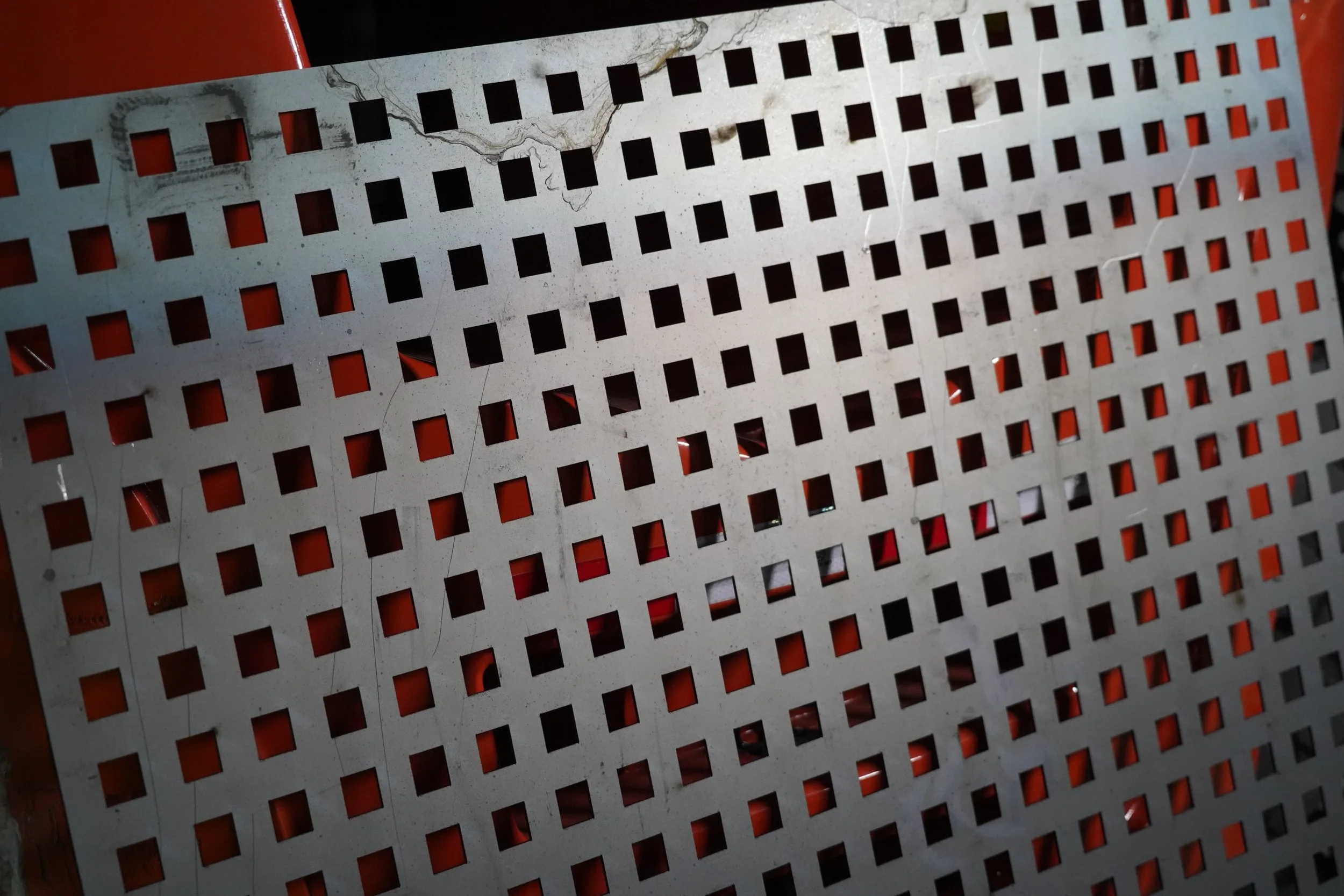

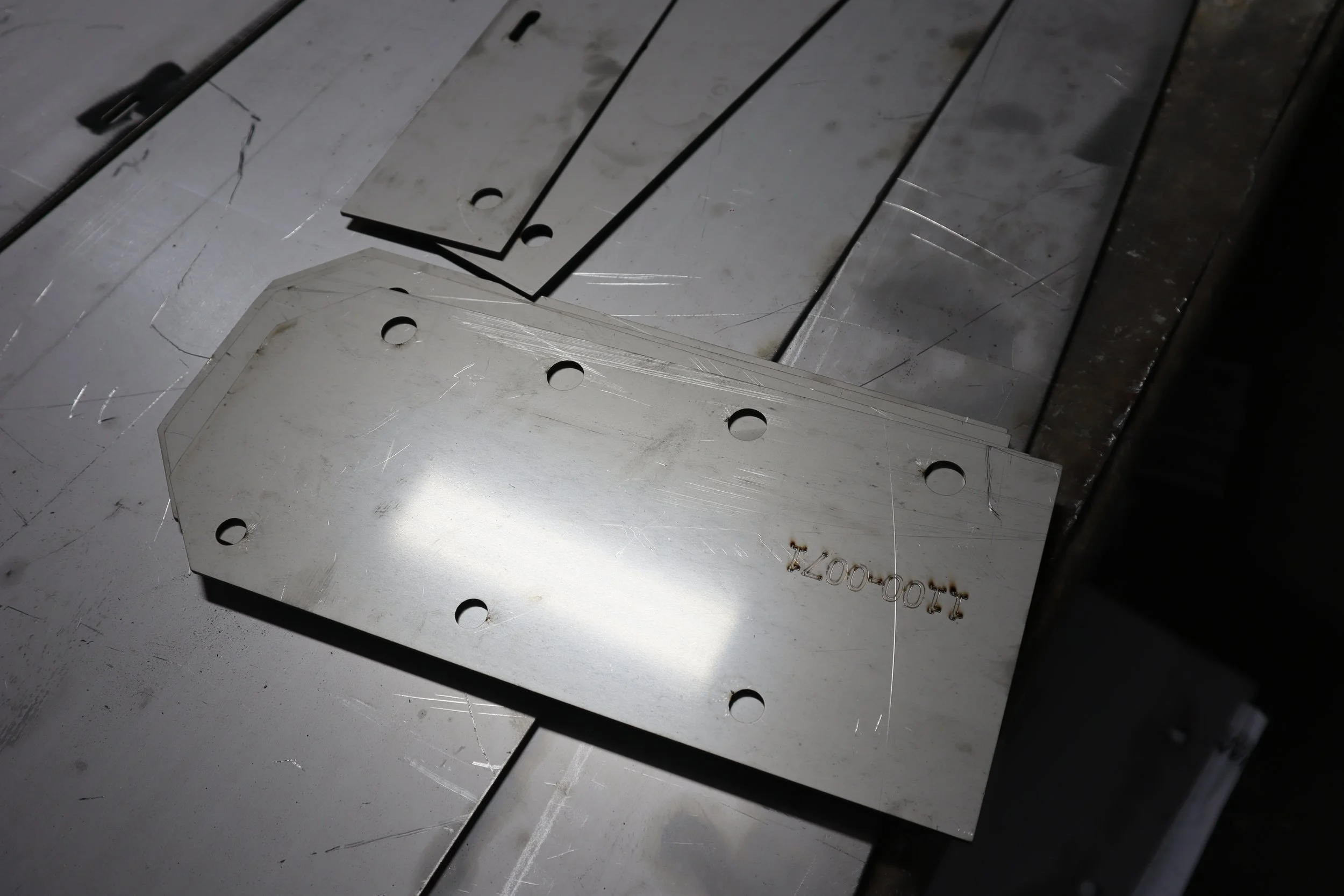

12KW APPLICATIONS

High-Power Cutting Head Technology

  • 6-Series

    6-Series Cutting Heads

  • 4-Series Cutting Heads

Reliable & Stable Fiber Laser Technology

Multi-Module CW Fiber Laser Technology

  • From 3kw up to 12kw

  • Highly Reliable & Maintenance Free

  • High Electro-Optical Conversion Efficiency

  • High Beam Stability & Quality

Optional Equipment

  • Air-Assist Gas Compressors

    Air-Assist Gas Compressors

    As a high cost-savings alternative, these high-efficiency Screw Type Air Compressors have an integrated air dryer, multi-stage filtration cartridges, timed relief valves for evacuation of condensation, programable user Interface, Sub-Micron Filtration and are well supported by XOVR CNC Parts & Service.

  • Vacuum Lifts & Material Handling

    Vacuum Lifts & Material Handling

    With up to 4,400lbs lift capacity, energy-saving quiet automatic shut-off, an Air Powered Vacuum Generator, front mounted gauges, ergonomic front handlebar, slide control valve with safety lock, a vacuum check valve and reservoir & a vacuum-leakage sensing system, these are the best lifts on the market.

  • Dust Collectors

    Dust Collectors

    With high-efficiency PTFE film-coated filter elements, self-cleaning pneumatic filter blast function, automatic on/off programability with the laser’s control interface, a filtration efficiency of 99.99% powered by Siemens Fan w/ WEG Blower, 50L solid waste collection capacity, these check all the boxes and are well supported by XOVR CNC Parts & Service.

  • Ambient N2 Vaporizers

    Ambient N2 Vaporizers

    Configured to the proper flow rates & pressures required across all ranges of fiber laser cutting machines. These ambient air vaporizers ensure proper liquid-to-gas conversation rates to keep up with modern fiber laser technologies' high-speeds and high volume demands.

  • Cranes & Hoists

    With a 1-2 Ton Capacity, 10 ft lift travel, a lifting speed from 14/2.5 fpm (adjustable with VFD), standard top hook & bottom hook, chain container & chain fall, standard pendant w/standard-to-lift pendant length, these hoists are a staple in the industry.
